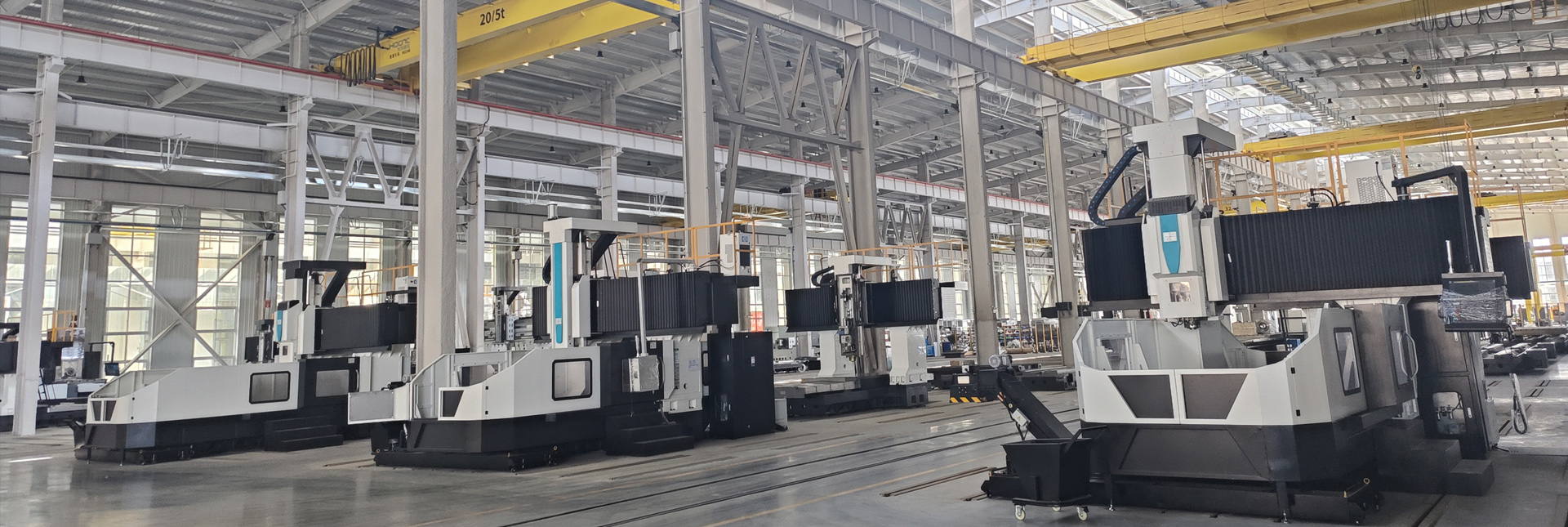

PLC Surface Grinding Machine

All Table Size Can Be Available In PLC Surface Griding Machine
Fix Grinding Mode Available In PLC Surface Grinding Machine

3 Types of PLC Grinding Modes

Conversation Automatic Wheel Dressing 2 Types Of Wheel Dressing Modes

2 Types Of Graphic Conversation Auto Wheel Dressing Mode Can Be Executed Together With 4 Grinding Modes & Automatic Wheel Compensation

Model – Elite

Pro Plus

Model – Elite

Specification / Models	Unit	AI 818	AI 1020	AI 1224	AI 1230	AI 1240
General Capacity
Max. Table Size	mm	200 × 450	250 × 500	300 × 600	300 × 750	300 × 1000
Max. Longitudinal Travel	mm	525	600	675	825	1050
Max. Cross Traverse	mm	225	275	325	325	325
Max. Spindle Center Height above Table	mm	400	400	400	400	400
Speed and Feeds
Max. Table Speeds	m/min	1.5 – 18 / 2.5 – 25 (Optional)
Power Cross Traverse	mm/min	1000
Auto Cross Feed at each Table Reversal (Infinitely Variable)	mm	0.5 to 5
Least Count of Vertical Feed Hand Wheel	mm	0.002
Grinding Head
Size of Grinding Wheel	mm	250 × 25 × 76.2	250 × 25 × 76.2	250 × 25 × 76.2	350 × 50 × 127	350 × 50 × 127
Power of Spindle Motor	HP	2	2	3	3	5
Speed of Grinding Spindle	RPM	2800	2800	2800	1440	1440
Hydraulic System
Working Pressure	Kg/Cm²	20	20	20	20	20
Motor	HP	2	2	2	3	3

Pro Plus

Specification / Models	Unit	AI 2448	AI 3060	AI 3260	AI 3280	AI 30100	AI 32100
General Capacity
Max. Table Size	mm	600 × 1200	750 × 1500	800 × 1500	800 × 2000	750 × 2500	800 × 2500
Max. Longitudinal Travel	mm	1275	1575	1575	2150	2600	2600
Max. Cross Traverse	mm	650	800	850	850	800	850
Max. Spindle Center Height above Table	mm	700
Speed and Feeds
Max. Table Speeds	m/min	1.5 – 18 / 2.5 – 25 (Optional)
Power Cross Traverse	mm/min	1500
Auto Cross Feed at each Table Reversal (Infinitely Variable)	mm	0.5 to 5
Least Count of Vertical Feed Hand Wheel	mm	0.002
Grinding Head
Size of Grinding Wheel	mm	450 × 50 × 127
Power of Spindle Motor	HP	10	10	15	15	20	20
Speed of Grinding Spindle	RPM	1440
Hydraulic System
Working Pressure	Kg/Cm²	20
Motor	HP	7.5	7.5	7.5	7.5	10	10
